1" NPT WATSON MCDANIEL TEMPERATURE REGULATOR W91-09-08S15-H14N
1" NPT WATSON MCDANIEL TEMPERATURE REGULATOR W91-09-08S15-H14N
Regular price
$1,890.00 USD
Regular price
Sale price
$1,890.00 USD
Unit price
per
Couldn't load pickup availability

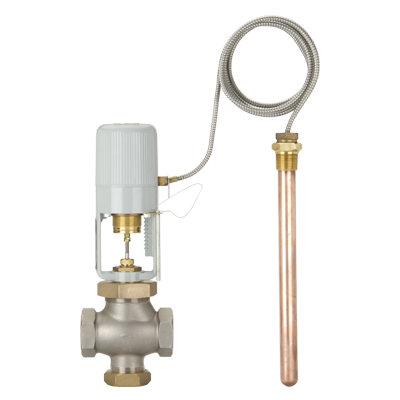

The W91 Self-Operating Temperature Regulators are the preferred choice of original equipment manufacturers, mechanical contractors and specifying engineers. They require no external power source and are ideal for regulating the temperature of tanks, process streams and various types of industrial equipment. The Actuator is noted for its rugged die-cast aluminum housing, fully-enclosed bellows assembly and internal over-temperature range protection.
Technical Specification |
Size | 1" |
Application | Heating |
Connection | NPT |
Service | Steam, Liquids |
Size | 1" |
Connection | NPT |
Dimension | (A) 4.125", (C) 2.12" |
Max. Inlet Pressure (psig) | 250 PSIG |
Dimension | (A) 4.125", (C) 2.12" |
Valve Action | Normally Open |
Valve Type | Single Seat |
Actuator Type | Non-Indicating |
Full Temperature Range | 155 - 250°F (68 - 121°C) |
Working Temperature Range | 210 - 245°F |
Capillary Length | 8 Feet |
Material Specification |
Valve Body | Stainless Steel |
Stuffing Box | Brass |
Trim Material | Stainless Steel |
Sensing Bulb | Copper |
Union Hub | Brass |
